Check the latest DKCV-1 series by SCHURTER. These models are particularly suitable for use in compact, high-performance applications with high EMC attenuation requirements.
This serie of chokes is designed for vertical THT mounting on printed circuit boards. The DKCV-1 series impresses with its compact design, very high inductance and small footprint.
Inside the Chokes, nanocrystalline cores are used. These enable high inductance values of 0.9 mH to 180 mH with a small size and allow operation at rated currents of 0.5 A to 10 A.

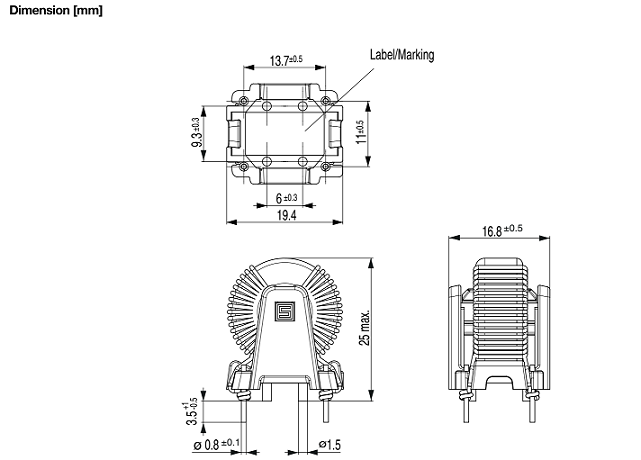

All models of the DKCV-1 series require the same footprint on the printed circuit board – an advantage in the design and layout of compact devices.
At Huijzer Components we currently support:
3-137-414 - 180mH 0.5A Vert.
3-137-415 - 55mH 1A Vert.
3-137-416 - 45mH 2A Vert.
3-137-417 - 12mH 3A Vert.
3-137-418 - 7.8mH 4A Vert.
3-137-419 - 2.7mH 6A Vert.
3-137-420 - 1.9mH 8A Vert.
3-137-421 - 0.9mH 10A Vert.
For more and detailed information, please contact our sales-desk.
