MEAN WELL expanded their product-range with the IOB-05 and 15 series. The key-features of these 5W and 15W AC-DC modules include their low standby power consumption, high efficiency and miniaturised form factor.
These key features, among others, make the IOB -series ideal for PCB integration in devices with limited board space, such as: industrial automation systems, power measurement devices, and smart home equipment.
Thanks to their compact construction and vertical placing, these power modules are particularly well suited for applications in small protective housings.

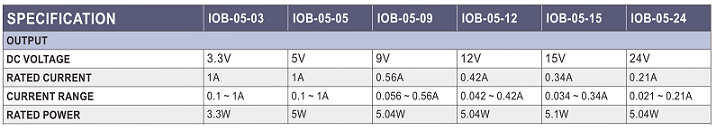

With output voltages of 3.3 V, 5 V, 9 V, 12 V, 15 V, and 24 V, all common industry voltage levels are covered. Compared to MEAN WELL’s existing IRM series, the new IOB series features a space-saving single-inline design and an extended operating temperature range from –40 to +85°C with natural air convection, while also offering flexible EMC tuning options.
With an extremely low standby power consumption of under 0.15 W, the compact and reliable modules are both energy-efficient and environmentally friendly. The IOB -modules support a universal and wide input range from 85 to 305 VAC, making them suitable for worldwide use. Additional included protection features are: protection against short circuit, overload, supervoltage, and over-temperature to ensure safe and reliable operation. In addition, they meet EMC requirements according to EN55032 Class A/B with external components and carry CE and UKCA approvals.
Please check our website for:
IOB 05-03 AC-DC Converter 3.3W 3.3V
IOB 05-05 AC-DC Converter 5W 5V
IOB 05-09 AC-DC Converter 5.04W 9V
IOB 05-12 AC-DC Converter 5.04W 12V
IOB 05-15 AC-DC Converter 5.1W 15V
IOB 05-24 AC-DC Converter 5.04W 24V
IOB 15-03B AC-DC Converter 9.9W 3.3V
IOB 15-05B AC-DC Converter 14W 5V
IOB 15-09B AC-DC Converter 15W 9V
IOB 15-12B AC-DC Converter 15W 12V
IOB 15-15B AC-DC Converter 15W 15V
IOB 15-24B AC-DC Converter 15W 24V
The power modules are available with a short lead-time and come with a three-year manufacturer’s warranty.
For more and detailed information, please contact our sales-desk.
